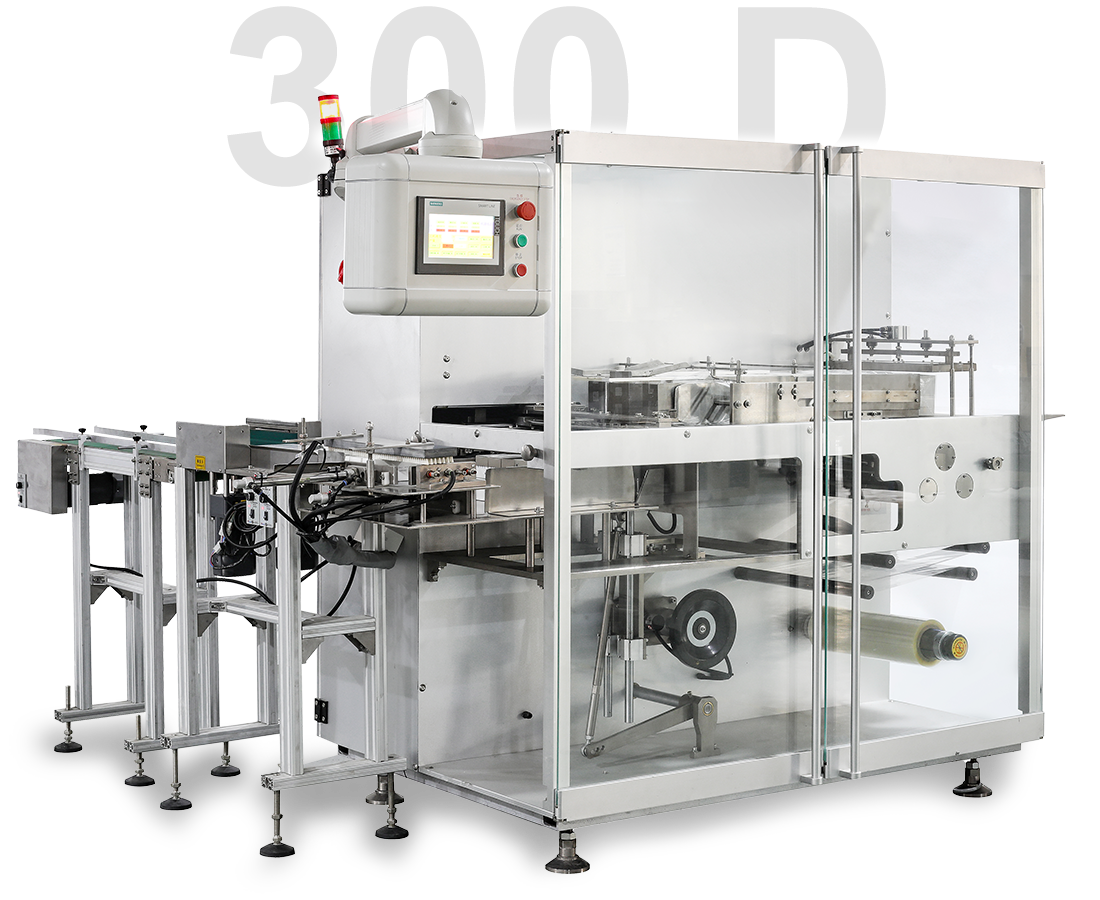

TMB-300 D Automatic Transparent Film 3D Packaging Machine
2000
long·mm
1300
width·mm
1800
high·mm
(10-35) medium pack/min
speed

TMB - 300 series automatic transparent film three-dimensional packaging machine is suitable for medicine, health care products, food, cosmetics and tobacco industries. And so on, is a new generation of ideal product packaging machinery. Transparent film wrapping technology is one of the most advanced packaging methods on the market today .

Our company's TMB - 300 series automatic three-dimensional packaging machine for transparent film is well received by new and old customers for its high speed and stable performance.


1. Fully automatic feeding, conveying, stacking, wrapping, forming, sealing, counting, etc. 2. The machine can be used independently or can be connected with laser coding machine, cartoning machine, etc. to form an automatic production line. 3. The use of angled packaging makes the packaging more perfect and improves the anti-counterfeiting ability of the packaged goods. 4. During the packaging process, when the small box is supplied, it can be automatically turned on; when no small box is supplied, it will automatically stop. 5. The operation is simple, and different packaging forms can be used according to user needs, and its size can be adjusted arbitrarily within the packaging range. 6. The measuring instruments and meters shall be in accordance with the legal measuring units. 7. The machine has compact structure, advanced performance, stable operation, high efficiency, energy saving and stepless speed regulation.

Packing   speed: ( 1 0-35) medium pack/min

Packaging   size: length (300-80) × width (200-50) × height (12 0 -30)   (mm)

Packaging   material: BOPP cigarette film PVC

Inner hole   diameter: φ 75mm

Thickness:   0.02 1 -0.028mm

Width: can be   selected according to packaging size

Sealing   temperature: 100-150

Power supply:   three-phase five-wire system 50HZ/AC380V

Working air   pressure: ≥0.3MPa

Combined   noise: < 75 dB(A)

Total power:   3.5KW

Machine   weight : about 600kg

Dimensions: 2000*1300*1800 mm



TMB-300 D Automatic Transparent Film  3D Packaging Machine

TMB-300 D Automatic Transparent Film 3D Packaging Machine

TMB - 300 series automatic transparent film three-dimensional packaging machine is suitable for medicine, health care products, food, cosmetics and tobacco industries. And so on, is a new generation of ideal product packaging machinery. Transparent film wrapping technology is one of the most advanced packaging methods on the market today .

Our company's TMB - 300 series automatic three-dimensional packaging machine for transparent film is well received by new and old customers for its high speed and stable performance.


商品编号:2000
商品型号:1300
人 气:384
评 论:0
产品介绍

Packing   speed: ( 1 0-35) medium pack/min

Packaging   size: length (300-80) × width (200-50) × height (12 0 -30)   (mm)

Packaging   material: BOPP cigarette film PVC

Inner hole   diameter: φ 75mm

Thickness:   0.02 1 -0.028mm

Width: can be   selected according to packaging size

Sealing   temperature: 100-150

Power supply:   three-phase five-wire system 50HZ/AC380V

Working air   pressure: ≥0.3MPa

Combined   noise: < 75 dB(A)

Total power:   3.5KW

Machine   weight : about 600kg

Dimensions: 2000*1300*1800 mm
